Module 48: Customizing 404 Pages with HTML
Introduction
A 404 error page appears when users try to access a page that doesn’t exist on a website. A well-designed custom 404 page improves user experience, keeps visitors engaged, and can provide helpful navigation back to the main site.
This module covers how to create and customize a 404 error page using HTML, CSS, and JavaScript. You’ll learn best practices, interactive elements, and creative design strategies.
Section 1: Understanding 404 Errors
1.1 What is a 404 Page?
A 404 error is an HTTP status code indicating that the requested page is not found.
Common reasons for a 404 error:
Deleted or moved pages without redirection
Typo in the URL
Broken links
1.2 Importance of a Custom 404 Page
Enhances user experience
Reduces bounce rates
Improves SEO (search engines track 404 errors)
Maintains brand identity
Section 2: Setting Up a Basic 404 Page with HTML
2.1 Creating a Simple 404 Page
Example Code:
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>404 - Page Not Found</title>
<style>
body {
font-family: Arial, sans-serif;
text-align: center;
padding: 50px;
background-color: #f4f4f4;
}
h1 {
font-size: 50px;
color: #333;
}
p {
font-size: 20px;
color: #666;
}
a {
text-decoration: none;
color: #007bff;
font-size: 18px;
}
a:hover {
text-decoration: underline;
}
</style>
</head>
<body>
<h1>404</h1>
<p>Oops! The page you are looking for cannot be found.</p>
<a href="/">Go to Homepage</a>
</body>
</html>
2.2 Explanation of the Code:
h1 & p elements display the error message.
CSS styles create a clean, centered layout.
A link (<a>) helps users navigate back to the homepage.
Section 3: Enhancing the 404 Page with CSS
3.1 Adding a Background Image & Styling
A visually appealing 404 page can make a difference. Use a custom background image and improved typography.
Updated Code:
<style>
body {
background: url('404-background.jpg') no-repeat center center fixed;
background-size: cover;
color: white;
font-family: 'Arial', sans-serif;
text-align: center;
padding-top: 150px;
}
</style>
3.2 Using CSS Animations for Effect
Animations can make your 404 page feel interactive.
Example:
@keyframes fadeIn {
from { opacity: 0; }
to { opacity: 1; }
}
h1 {
animation: fadeIn 2s ease-in-out;
}
Section 4: Adding Interactive Elements with JavaScript
4.1 Search Bar on 404 Page
Users might want to search for something else instead of leaving the site.
Example Code:
<input type="text" id="searchBox" placeholder="Search our site...">
<button onclick="searchSite()">Search</button>
<script>
function searchSite() {
let query = document.getElementById('searchBox').value;
if (query) {
window.location.href = '/search?q=' + encodeURIComponent(query);
}
}
</script>
Section 5: Advanced 404 Page Features
5.1 Dynamic Redirects
Automatically redirect users to a related page based on similar URLs.
Example using JavaScript:
<script>
let requestedURL = window.location.pathname;
if (requestedURL.includes("blog")) {
window.location.href = "/blog";
}
</script>
5.2 Embedding a Funny GIF or Meme
Adding humor can make the 404 error less frustrating.
Example:
<img src="funny-404.gif" alt="Funny 404 image">
Section 6: Deploying & Testing Your 404 Page
6.1 Setting Up the 404 Page on a Server
For Apache Server (.htaccess method)
Open the .htaccess file in your website’s root directory.
Add the following line:
ErrorDocument 404 /404.html
Upload 404.html to the root folder.
For Nginx Server
Open the Nginx configuration file.
Add:
error_page 404 /404.html;
Restart Nginx:
sudo service nginx restart
6.2 Testing the 404 Page
Manually test by typing an incorrect URL in the browser.
Check console logs for errors in JavaScript.

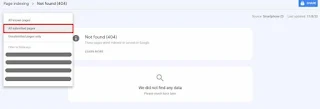

Use Google Search Console to analyze 404 errors.
Section 7: Exercises & Challenges
Exercise 1: Basic Custom 404 Page
Modify the provided HTML & CSS to match your brand’s theme.
Exercise 2: Adding a Search Feature
Implement a working search box on the 404 page.
Exercise 3: Implement a Dynamic Redirect
Redirect users based on URL keywords using JavaScript.
Challenge Task: Gamify the 404 Page
Add a mini-game (like a jumping dinosaur game) to engage users before they leave.
Conclusion
A customized 404 page keeps users engaged, enhances branding, and improves navigation. By combining HTML, CSS, and JavaScript, you can create an interactive and helpful 404 page that adds value to your website.
Thursday, February 27, 2025
Html Module 47
Module 47: Testing HTML in Different Browsers
Introduction
When developing web pages, ensuring compatibility across different browsers is crucial. Since different browsers render HTML, CSS, and JavaScript differently, rigorous cross-browser testing is necessary to deliver a seamless user experience.
1. Importance of Cross-Browser Testing
Why Test HTML in Different Browsers?
Different browsers interpret HTML, CSS, and JavaScript uniquely.
Users access websites on different devices, operating systems, and browser versions.
Inconsistencies can lead to broken layouts, misaligned elements, or malfunctioning scripts.
Common Browser Rendering Differences
CSS Handling: Fonts, shadows, flexbox, and grid layouts may appear differently.
JavaScript Execution: Some older browsers may not support ES6+ features.
Rendering Engine Variations: Browsers use different engines (e.g., Chrome: Blink, Firefox: Gecko, Safari: WebKit).
2. Testing Strategy for Cross-Browser Compatibility
Step 1: Identify Target Browsers
Analyze user analytics to determine commonly used browsers.
Consider popular browsers:
Google Chrome (Blink)
Mozilla Firefox (Gecko)
Apple Safari (WebKit)
Microsoft Edge (Blink)
Opera (Blink)
Internet Explorer (Legacy support if necessary)
Step 2: Define Testing Methods
Manual Testing: Open the website in multiple browsers and check for visual or functional discrepancies.
Automated Testing: Use browser testing tools to automate compatibility checks.
Step 3: Conduct Cross-Browser Testing
Method 1: Manual Testing (Basic)
Open the HTML file in each browser.
Check visual elements such as fonts, colors, and layouts.
Interact with buttons, forms, and navigation to test functionality.

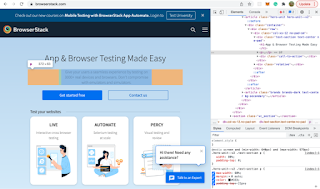

Method 2: Using Developer Tools
Chrome DevTools, Firefox Developer Tools, Safari Web Inspector:
Inspect elements, test responsiveness, and debug JavaScript errors.
Change user agents to simulate different browsers.
Method 3: Online Cross-Browser Testing Tools
BrowserStack, LambdaTest, Sauce Labs:
Test websites on multiple real browsers and devices.
Detect rendering issues without installing different browsers manually.
Method 4: Automated Testing with Selenium
Selenium can automate browser testing with test scripts.
Example Python script using Selenium:
from selenium import webdriver
# Initialize browser drivers
browsers = ["chrome", "firefox"]
for browser in browsers:
if browser == "chrome":
driver = webdriver.Chrome()
elif browser == "firefox":
driver = webdriver.Firefox()
driver.get("https://example.com")
print(f"Testing {browser}: Page title is {driver.title}")
driver.quit()
3. Handling Browser-Specific Issues
Common Issues and Fixes
Issue Cause Fix
Different font rendering Browser-specific font smoothing Use font-smoothing properties
Flexbox/grid layout differences Browser rendering quirks Add -webkit-, -moz- prefixes
JavaScript ES6 errors Older browsers don’t support ES6 Use Babel to transpile code
CSS animations not working Browser-specific implementation Use @keyframes with prefixes
Using Feature Detection Instead of Browser Detection
Instead of detecting a browser directly (which can be unreliable), use feature detection with Modernizr:
<script src="https://cdnjs.cloudflare.com/ajax/libs/modernizr/2.8.3/modernizr.min.js"></script>
<script>
if (Modernizr.flexbox) {
console.log("Flexbox supported!");
} else {
console.log("Flexbox NOT supported!");
}
</script>
4. Practical Exercises
Exercise 1: Manual Testing on Browsers
Open your HTML project in at least 3 different browsers.
Identify any design inconsistencies.
Document the differences and propose fixes.
Exercise 2: Using DevTools to Debug
Open Chrome DevTools (F12 or right-click > Inspect).
Simulate another browser (Device Toolbar > User Agent).
Fix any rendering issues found in the Elements tab.
Exercise 3: Running Automated Tests with Selenium
Install Selenium:
pip install selenium
Modify the provided Python script to test multiple pages.
Observe the results and fix detected issues.
5. Conclusion
Cross-browser testing ensures a consistent user experience.
Combining manual and automated testing improves efficiency.
Using online tools and automation frameworks can speed up debugging.
By following this module, learners will develop strong cross-browser testing skills and understand how to create robust, browser-compatible web applications.
Wednesday, February 26, 2025
Html Module 46
Module 46: HTML with WebAssembly
Objective:
This module introduces WebAssembly (WASM) and how it integrates with HTML and JavaScript to create high-performance web applications. It covers compiling languages like C, C++, and Rust to WASM, embedding WASM in HTML, and interacting with JavaScript for seamless execution.
1. Introduction to WebAssembly (WASM)
What is WebAssembly?
WebAssembly (WASM) is a binary instruction format designed to execute at near-native speed in web browsers. It enables developers to run high-performance code in web applications, unlocking the power of languages like C, C++, and Rust within a browser.
Why Use WebAssembly with HTML?
Performance Boost: WASM executes faster than JavaScript, making it ideal for CPU-intensive tasks.
Cross-Platform: Runs on any browser supporting WebAssembly.
Portability: Convert C/C++/Rust code into WASM and use it in web applications.
Interoperability: Can communicate with JavaScript via the WebAssembly JavaScript API.
2. Setting Up WebAssembly in HTML
Step 1: Install Emscripten (for C/C++ to WASM)
Emscripten is a toolchain that compiles C/C++ code into WebAssembly.
Installation:
Download Emscripten SDK:
git clone https://github.com/emscripten-core/emsdk.git
cd emsdk
./emsdk install latest
./emsdk activate latest
source ./emsdk_env.sh
Verify installation:
emcc -v
Step 2: Writing a Simple C Program and Compiling to WASM
C Code: "hello.c"
This program returns a simple sum of two numbers.
#include <stdio.h>
int add(int a, int b) {
return a + b;
}
Compile to WASM:
emcc hello.c -o hello.js -s EXPORTED_FUNCTIONS="['_add']" -s MODULARIZE=1
This generates:
hello.wasm (the WebAssembly binary)
hello.js (JavaScript wrapper to load WASM)
hello.wasm.wat (human-readable WASM)
Step 3: Loading WebAssembly in HTML
Now, we load our WebAssembly module into an HTML page.
HTML File: index.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>WebAssembly with HTML</title>
</head>
<body>
<h1>WebAssembly Example</h1>
<p>Result: <span id="result"></span></p>
<script src="hello.js"></script>
<script>
Module().then((module) => {
let result = module._add(5, 7);
document.getElementById("result").innerText = result;
});
</script>
</body>
</html>
Explanation:
Loads the hello.js script, which initializes WebAssembly.
Calls the compiled _add() function inside WASM.
Updates the HTML span with the result.
3. Interacting with WebAssembly from JavaScript
We can pass values from JavaScript to WebAssembly and receive output.
Example: JavaScript Calling WASM
fetch("hello.wasm")
.then(response => response.arrayBuffer())
.then(bytes => WebAssembly.instantiate(bytes, {}))
.then(({ instance }) => {
console.log("Result from WASM:", instance.exports.add(3, 4));
});
Key Concepts:
fetch("hello.wasm"): Loads the WASM binary.
WebAssembly.instantiate(bytes, {}): Initializes WASM in JavaScript.
instance.exports.add(3, 4): Calls the WASM function.
4. Advanced WebAssembly with Rust
Instead of C/C++, you can use Rust for WebAssembly.
Step 1: Install Rust and WebAssembly Target
rustup target add wasm32-unknown-unknown
Step 2: Create a Rust WebAssembly Program
Rust File: lib.rs
#[no_mangle]
pub fn multiply(a: i32, b: i32) -> i32 {
a * b
}
Step 3: Compile to WASM
cargo build --target wasm32-unknown-unknown --release
This generates lib.wasm, which can be loaded into an HTML page.
5. Exercises and Challenges
Exercise 1: Modify the WebAssembly Function
Change the add() function to perform multiplication.
Recompile and test in HTML.
Exercise 2: Accept User Input
Create an HTML form with two input fields.
Use JavaScript to pass user input to WASM.
Display the calculated result.
Exercise 3: Use WebAssembly for Image Processing
Load an image into an HTML <canvas>.
Use WebAssembly to apply grayscale to the image.
6. Debugging and Performance Optimization
Debugging WebAssembly
Use Chrome DevTools → WebAssembly Debugging.
View .wat files (human-readable WASM).
Enable source maps in Emscripten.
Performance Optimization
Optimize Code: Use -O3 when compiling C/C++.
Reduce WASM Size: Minify with wasm-opt.
Use SIMD & Threads: Parallel processing in WASM.
7. Conclusion and Next Steps
Key Takeaways:
WebAssembly is fast and works with C, C++, and Rust.
HTML and JavaScript can communicate with WASM.
Real-world applications include gaming, AI, and high-performance computing.
Next Steps:
Experiment with memory management in WASM.
Explore WebAssembly System Interface (WASI).
Integrate WebGL for 3D rendering with WASM.
This module provides theory, step-by-step practical implementation, interactive exercises, and examples to ensure learners deeply understand WebAssembly with HTML.
Tuesday, February 25, 2025
Html Module 45
Module 45: Building HTML Prototypes for Websites
Module Overview
In this module, you will learn how to build functional website prototypes using HTML, CSS, and JavaScript. Prototyping helps visualize web designs, test user interactions, and refine website functionality before full development.
1: Introduction to HTML Prototyping
What is an HTML Prototype?
An HTML prototype is a simplified version of a website that demonstrates layout, navigation, and interactive elements without full backend functionality. Unlike static wireframes, HTML prototypes provide a working model that users can interact with.
Why Use HTML Prototypes?
Allows early usability testing
Helps designers and developers collaborate effectively
Provides a better understanding of page structures and interactions
Saves time by reducing major changes in later development stages
Example: Imagine you are designing an e-commerce website. Instead of building the full site with backend features, you create an HTML prototype with clickable navigation, product listings, and a basic checkout flow.
2: Setting Up an HTML Prototype
Basic Requirements
Text Editor: VS Code, Sublime Text, or Atom
Web Browser: Chrome, Firefox, Edge
Live Server Extension (for real-time updates)
Folder Structure
Organizing files properly helps manage the prototype efficiently.
/html-prototype
/css
styles.css
/js
script.js
/images
index.html
about.html
contact.html
3: Creating the Basic Structure
Step 1: Writing the HTML Framework
Create a basic structure using semantic HTML.
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Website Prototype</title>
<link rel="stylesheet" href="css/styles.css">
</head>
<body>
<header>
<h1>Website Prototype</h1>
<nav>
<ul>
<li><a href="index.html">Home</a></li>
<li><a href="about.html">About</a></li>
<li><a href="contact.html">Contact</a></li>
</ul>
</nav>
</header>
<main>
<h2>Welcome to Our Website</h2>
<p>This is a simple HTML prototype.</p>
</main>
<footer>
<p>© 2025 Website Prototype</p>
</footer>
</body>
</html>
Explanation
Uses semantic elements (<header>, <nav>, <main>, <footer>)
Provides a responsive meta tag for mobile compatibility
Links an external CSS file for styling
4: Adding Styles for Better Visualization
HTML prototypes should be visually appealing but not over-designed.
Step 2: Creating a Simple CSS File
styles.css
body {
font-family: Arial, sans-serif;
margin: 0;
padding: 0;
background-color: #f4f4f4;
}
header {
background: #333;
color: white;
padding: 15px;
text-align: center;
}
nav ul {
list-style: none;
padding: 0;
}
nav ul li {
display: inline;
margin: 0 10px;
}
nav ul li a {
color: white;
text-decoration: none;
}
Key Takeaways
Ensures basic styling without focusing too much on aesthetics
Uses a navigation bar with simple styling
Improves readability and layout structure
5: Adding Basic Interactivity
Prototypes can include minimal JavaScript to simulate real interactions.
Step 3: Adding a JavaScript File
script.js
document.addEventListener("DOMContentLoaded", function() {
alert("Welcome to the website prototype!");
});
Enhancing User Interaction
Add hover effects to buttons
Create a working navigation menu
Simulate form validation
Example: Simulating a form submission
<form id="contact-form">
<input type="text" placeholder="Your Name" required>
<input type="email" placeholder="Your Email" required>
<button type="submit">Submit</button>
</form>
<script>
document.getElementById("contact-form").addEventListener("submit", function(event) {
event.preventDefault();
alert("Form submitted successfully!");
});
</script>
6: Creating Clickable Wireframes with HTML
Instead of static wireframes, create clickable prototypes.
Step 4: Linking Multiple Pages
Create an About and Contact page
Use simple navigation with anchor links
Allow users to move between pages easily
Example:
<a href="about.html">Go to About Page</a>
7: Testing and Refining the Prototype
Usability Testing Checklist
Is the navigation intuitive?
Are buttons and links working properly?
Does the layout work on mobile devices?
Practical Exercise
Test Your Prototype on Mobile
Open Developer Tools (F12 in Chrome)
Switch to Mobile View (Ctrl + Shift + M)
Ensure the layout adjusts properly
Get Feedback from Users
Share the prototype link
Ask users to complete specific tasks (e.g., navigate to the About page)
Collect feedback and refine the prototype
8: Exporting and Sharing the Prototype
Methods for Sharing
Host on GitHub Pages
Upload files to a GitHub repository
Enable GitHub Pages for live preview
Use CodePen or JSFiddle
Paste HTML, CSS, and JavaScript
Share the link with stakeholders
ZIP and Send
Compress the project folder
Share via email or cloud storage
Final Exercise: Build a Complete Prototype
Task: Create a Functional Blog Prototype
Homepage: Displays blog posts
Post Page: Shows full blog content
Contact Page: Includes a form with validation
Navigation: Allows users to switch between pages
Example Folder Structure
/blog-prototype
/css
styles.css
/js
script.js
index.html
post.html
contact.html
Challenge
Add hover effects to buttons
Include a modal pop-up for user feedback
Implement a simple responsive design
Summary
Learned how to structure an HTML prototype using simple HTML, CSS, and JavaScript
Explored interactive elements like navigation, buttons, and forms
Tested usability and refined the design based on feedback
Practiced sharing and hosting the prototype online
By mastering HTML prototypes, you can efficiently communicate design ideas, test usability, and iterate on improvements before full development.
Subscribe to:
Posts (Atom)
-
Module 26 : CSS Scroll Snap – Creating Smooth Scrolling Sections Introduction to CSS Scroll Snap CSS Scroll Snap is a powerful feature th... -
Css Module 26 If You want To Earn Certificate For My All Course Then Contact Me At My Contact Page then I Will Take A Test And Give Y...
-
Module 16: Introduction to Power Query This module introduces Power Query, a powerful data transformation and preparation tool integrated ...
